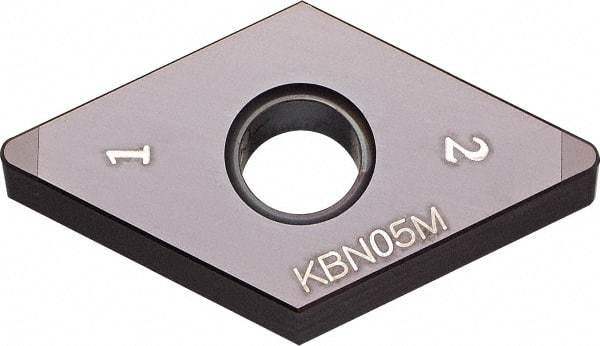

Kyocera - DNGA433 Grade KBN05M CBN Turning Insert - Megacoat Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 50425362
Brand: Kyocera
Model #: 8835333
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | DNGA |
| Insert Size | 433 |
| Material | CBN |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (mm) | 1.1906 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | KBN05M |
| Coating | Megacoat |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | DNGA150412S00545MEP |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | DNGA433S00245MEP |
| Primary Workpiece Material | H |
| Included Angle | 55 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Pin & Clamp |
| Cutting Edge Style | Chamfered & Honed |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
