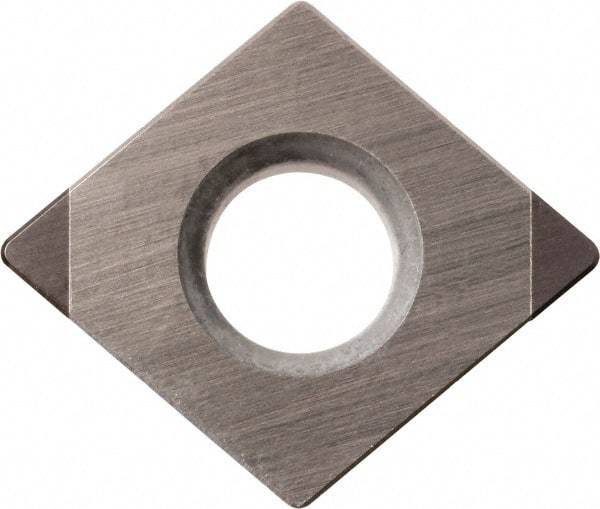

Kyocera - CPGB2.51.52 Grade KBN25M CBN Turning Insert - Megacoat Finish, 80° Diamond, 5/16" Inscr Circle, 3/32" Thick, 1/32" Corner Radius
Item #: 50386309
Brand: Kyocera
Model #: 8826793
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | CPGB |
| Insert Size | 2.51.52 |
| Material | CBN |
| Inscribed Circle (mm) | 7.94 |
| Inscribed Circle (Decimal Inch) | 0.3125 |
| Inscribed Circle (Inch) | 5/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KBN25M |
| Coating | Megacoat |
| Material Grade | Micrograin |
| Hole Diameter (mm) | 3.51 |
| Hole Diameter (Decimal Inch) | 0.1380 |
| ISO Number | CPGB080208S01035MET |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | CPGB25152S00435MET |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Chamfered & Honed |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
