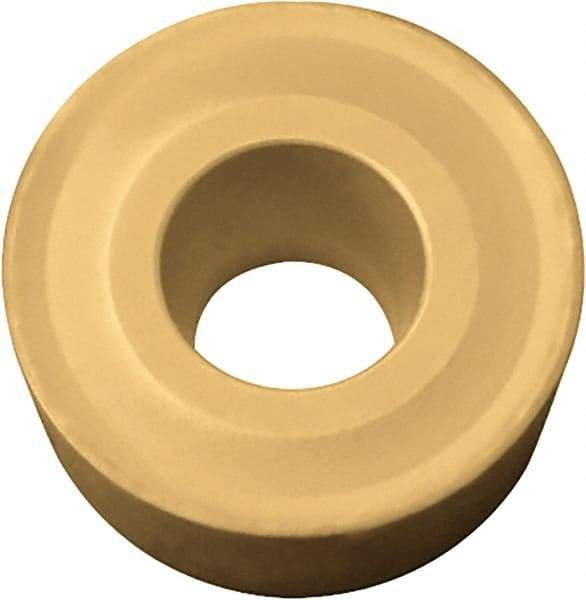

Kyocera - RCMX1003M0 Grade CA510 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, Round, 10mm Inscr Circle, 1/8" Thick
Item #: 50383199
Brand: Kyocera
Model #: 8840250
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 1003M0 |
| Material | Carbide |
| Inscribed Circle (mm) | 10.00 |
| Inscribed Circle (Decimal Inch) | 0.3937 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Manufacturer's Grade | CA510 |
| Coating | TiCN/Al2O3/TiN |
| Hole Diameter (mm) | 3.61 |
| Hole Diameter (Decimal Inch) | 0.1420 |
| Rake | Positive |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | RCMX1003M0 CA510 |
| Primary Workpiece Material | P |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Round |
