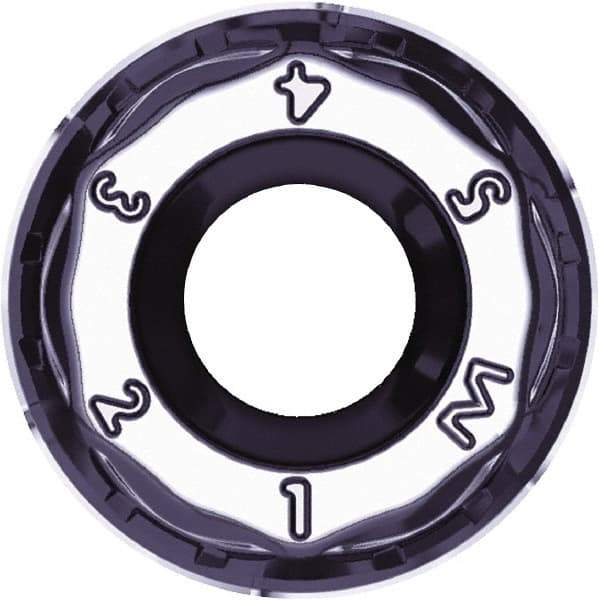

Kyocera - RPGT1605 GM Grade CA6535 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 5.56mm Thick
Item #: 50381391
Brand: Kyocera
Model #: 8839253
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RPGT |
| Insert Size | 1605 |
| Material | Carbide |
| Manufacturer's Grade | CA6535 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 16.00 |
| Width (Decimal Inch) | 0.6299 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 5.80 |
| Hole Diameter (Decimal Inch) | 0.2283 |
| Relief Angle | 11.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RPGT1605M0ER-GM |
