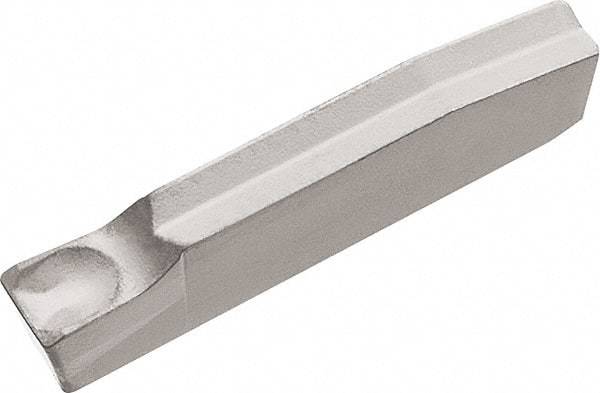

Kyocera - 4GMN TK Grade CR9025, 4mm Cutting Width Carbide Grooving Insert - Neutral, 0.3mm Corner Radius, Columnar TiCN/TiN Finish
Item #: 50381037
Brand: Kyocera
Model #: 8811316
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 4 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | CR9025 |
| Coating | Columnar TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Chipbreaker | TK |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Coating Process | CVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Rake Angle | 9 |
| Rake | Negative |
| Manufacturers Catalog Number | GMN4-TK |
| Insert Thickness (Decimal Inch) | 0.1299 |
| Insert Thickness (mm) | 3.3000 |
