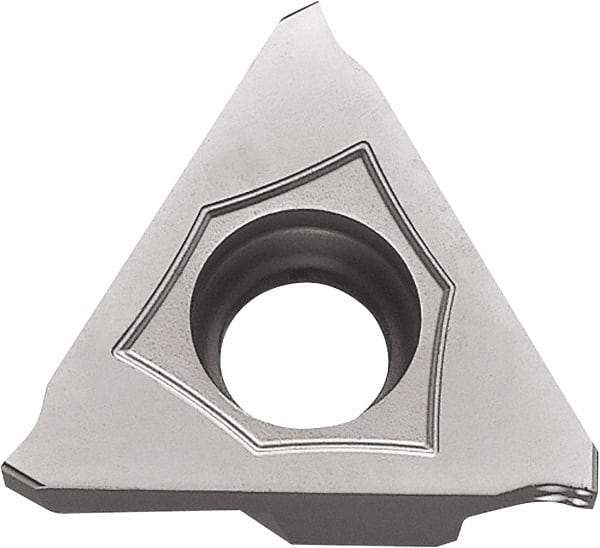

Kyocera - 43GBA MY Grade TN6020, 4mm Cutting Width Cermet Grooving Insert - 5mm Max Depth of Cut, Left Hand, 0.4mm Corner Radius, TiCN Finish
Item #: 50377282
Brand: Kyocera
Model #: 8830287
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GBA |
| Insert Size | 43 |
| Material | Cermet |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1575 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Material Grade | Super Micrograin |
| Manufacturer's Grade | TN6020 |
| Coating | TiCN |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Relief Angle | 2 |
| Chipbreaker | MY |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.4000 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Series | GBA |
| Manufacturers Catalog Number | GBA43L400-040MY |
| Insert Thickness (Decimal Inch) | 0.1870 |
