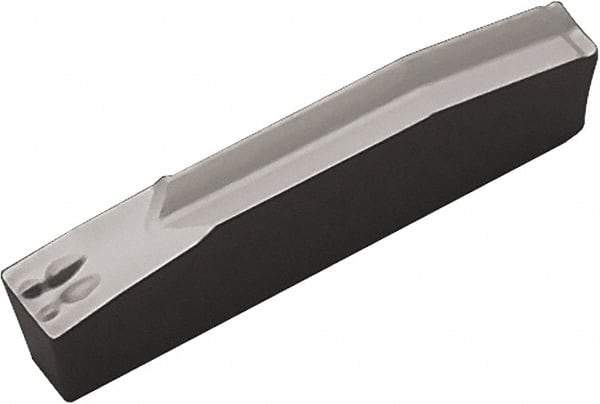

Kyocera - 2.20GMN Grade TN90, 2.2mm Cutting Width Cermet Grooving Insert - Neutral, 0.17mm Corner Radius, TiCN/NbC Finish
Item #: 50375294
Brand: Kyocera
Model #: 8801459
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 2.20 |
| Material | Cermet |
| Cutting Width (mm) | 2.20 |
| Cutting Width (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | TN90 |
| Coating | TiCN/NbC |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.17 |
| Corner Radius (Decimal Inch) | 0.006693 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Manufacturers Catalog Number | GMN2.2 |
| Insert Thickness (Decimal Inch) | 0.0709 |
| Insert Thickness (mm) | 1.8000 |
