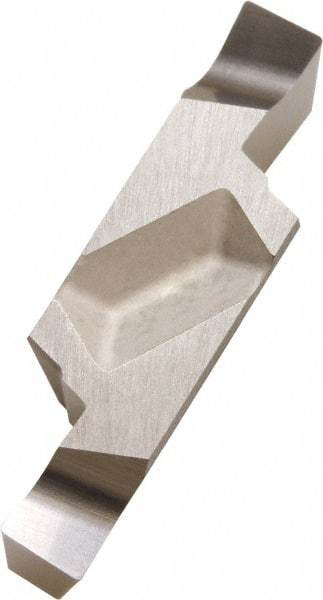

Kyocera - 500GVF C Grade TC60, 5mm Cutting Width Cermet Grooving Insert - 8.3mm Max Depth of Cut, Left Hand, 0.4mm Corner Radius, NbC Finish
Item #: 50375047
Brand: Kyocera
Model #: 8811443
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 500 |
| Material | Cermet |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Maximum Depth of Cut (mm) | 8.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.3268 |
| Manufacturer's Grade | TC60 |
| Coating | NbC |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Relief Angle | 2 |
| Chipbreaker | C |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.015748 |
| Overall Length (mm) | 27.00 |
| Overall Length (Decimal Inch) | 1.0630 |
| Series | GVF |
| Rake Angle | 15 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFL500C |
| Insert Thickness (Decimal Inch) | 0.2756 |
| Insert Thickness (mm) | 7 |
