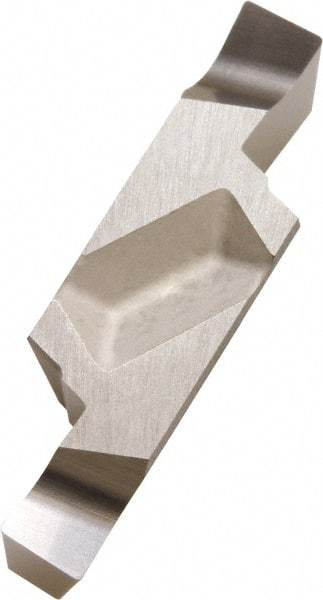

Kyocera - 300GVF B Grade TC40, 3mm Cutting Width Cermet Grooving Insert - 4.8mm Max Depth of Cut, Right Hand, 0.2mm Corner Radius, TiC/TiN Finish
Item #: 50374917
Brand: Kyocera
Model #: 8809680
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 300 |
| Material | Cermet |
| Cutting Width (mm) | 3.00 |
| Cutting Width (Decimal Inch) | 0.1181 |
| Maximum Depth of Cut (mm) | 4.80 |
| Maximum Depth of Cut (Decimal Inch) | 0.1890 |
| Manufacturer's Grade | TC40 |
| Coating | TiC/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Relief Angle | 2 |
| Chipbreaker | B |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GVF |
| Rake Angle | 14 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFR300B |
| Insert Thickness (Decimal Inch) | 0.2283 |
| Insert Thickness (mm) | 5.8000 |
