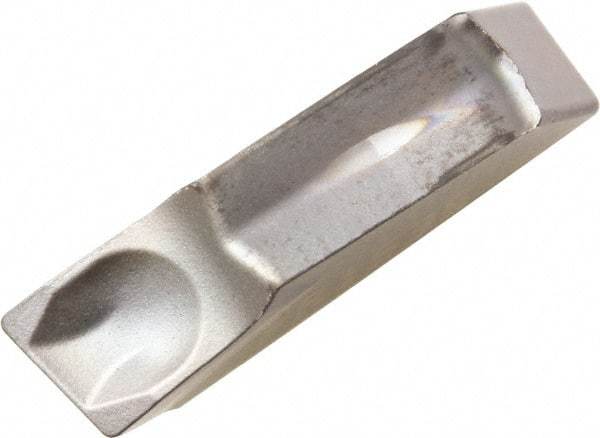

Kyocera - TK S TN90 Grade, 0.122" Cutting Width, Cermet Cutoff Insert - 8° Right Hand Lead Angle, 0.0098" Cnr Rad, TiCN/NbC Coated
Item #: 50374685
Brand: Kyocera
Model #: 8802992
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal. It can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Material | Cermet |
| Insert Style | TK |
| Insert Size | 3 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Manufacturer's Grade | TN90 |
| Coating | TiCN/NbC |
| Series | TK |
| Chipbreaker | S |
| Full Radius | No |
| Multi-Use Application | Cut-Off |
| Corner Radius (Decimal Inch) | 0.009843 |
| Corner Radius (mm) | 0.25 |
| Insert Hand | Right Hand |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TKR3 |
