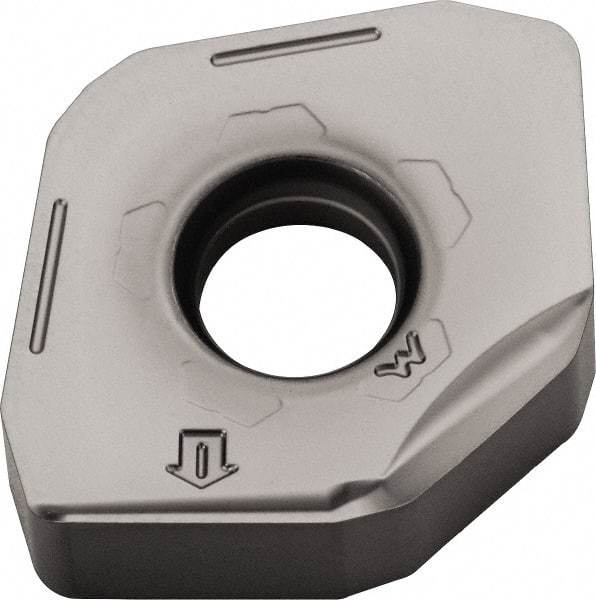

Kyocera - PNEU1205 W Grade TN100M Cermet Milling Insert - TiCN/NbC Finish, 5.56mm Thick
Item #: 50374586
Brand: Kyocera
Model #: 8837832
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | PNEU |
| Insert Size | 1205 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | TiCN/NbC |
| Width (mm) | 17.85 |
| Width (Decimal Inch) | 0.7028 |
| Thickness (mm) | 5.56 |
| Thickness (Decimal Inch) | 0.2189 |
| Hole Diameter (mm) | 6.20 |
| Hole Diameter (Decimal Inch) | 0.2441 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Shape | Pentagon |
| Insert Hand | Right Hand |
| Chipbreaker | W |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | PNEU1205ANER-W |
