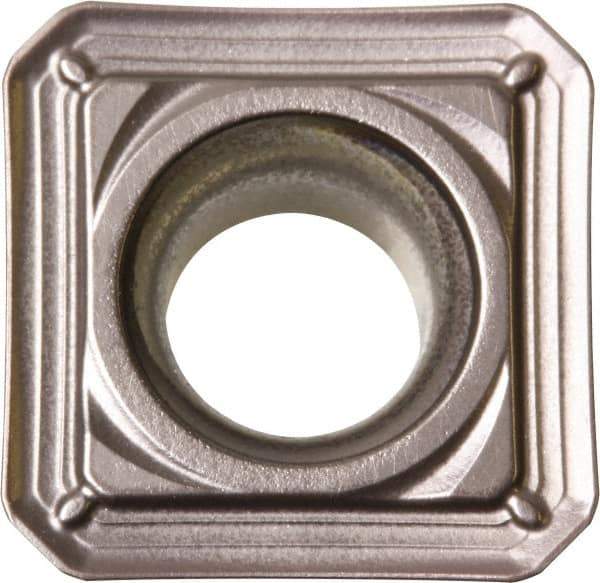

Kyocera - SEKT43 S Grade TN100M Cermet Milling Insert - TiCN/NbC Finish, 0.187" Thick, 1/2" Inscribed Circle, 0.067" Corner Radius
Item #: 50374552
Brand: Kyocera
Model #: 8807751
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | SEKT |
| Insert Size | 43 |
| Material | Cermet |
| Manufacturer's Grade | TN100M |
| Coating | TiCN/NbC |
| Width (Inch) | 1/2 |
| Width (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Corner Radius (Decimal Inch) | 0.0670 |
| Hole Diameter (Decimal Inch) | 0.2170 |
| Relief Angle | 25.000 |
| Rake Angle | 15 |
| Rake | Negative |
| Shape | Square |
| Insert Hand | Neutral |
| Chipbreaker | S |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SEKT43AFEN-S |
