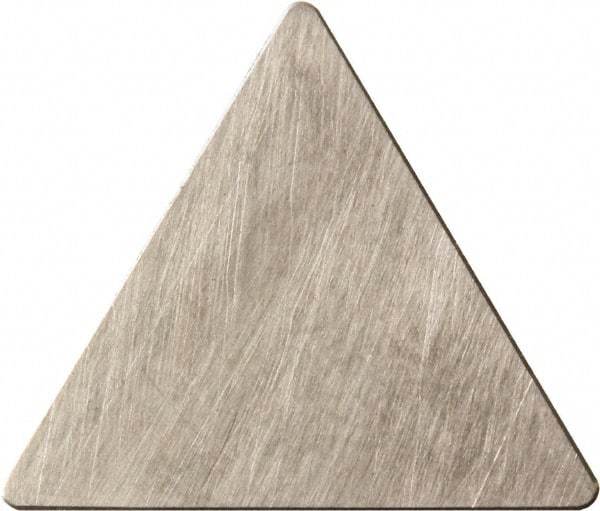

Kyocera - TPG1.81.51 Grade TC30 Cermet Turning Insert - Uncoated, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50374115
Brand: Kyocera
Model #: 8850243
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TPG |
| Insert Size | 1.81.51 |
| Material | Cermet |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TC30 |
| Coating | Uncoated |
| ISO Number | TPGN090204 |
| Rake | Positive |
| Relief Angle | 11 |
| Manufacturers Catalog Number | TPG18151 TC30 |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
