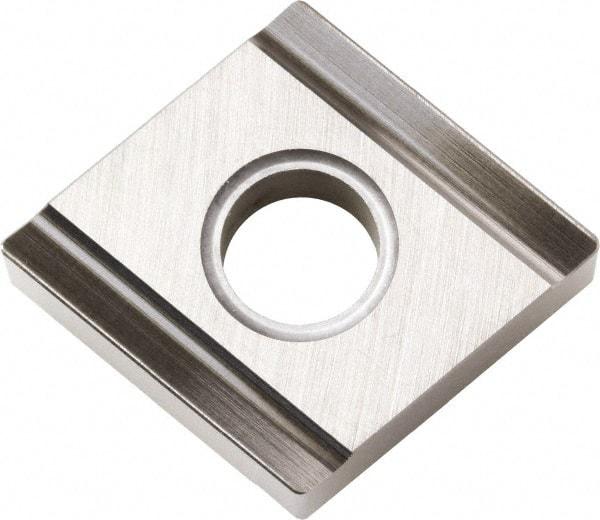

Kyocera - CNGG431 Grade TN60 Cermet Turning Insert - Uncoated, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 50371665
Brand: Kyocera
Model #: 8817098
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | CNGG |
| Insert Size | 431 |
| Material | Cermet |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | TN60 |
| Coating | Uncoated |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNGG120404R |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNGG431R TN60 |
| Primary Workpiece Material | P |
| Included Angle | 80 |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Insert Holding Method | Pin & Clamp |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
