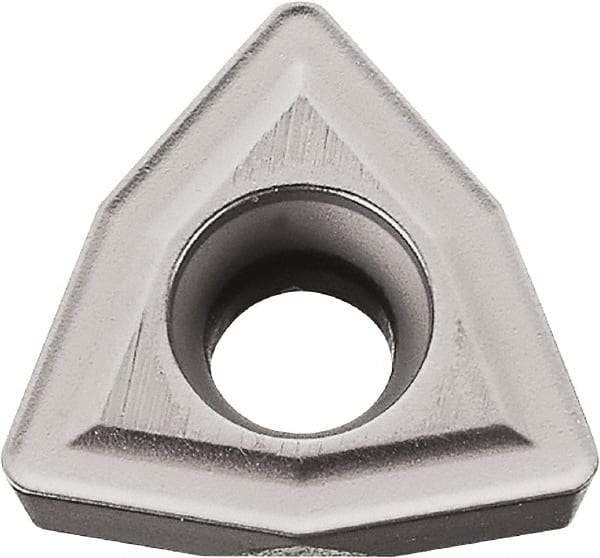

Kyocera - WCMX06 M1 Grade CA2325 Carbide Indexable Drill Insert - Trigon, 3/8" Inscribed Circle
Item #: 50370907
Brand: Kyocera
Model #: 8850611
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WCMX |
| Insert Size | 06 |
| Material | Carbide |
| Manufacturer's Grade | CA2325 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.031250 |
| Shape | Trigon |
| Hole Diameter (Decimal Inch) | 0.1460 |
| Relief Angle | 7 |
| Included Angle | 80 |
| Coating Process | CVD |
| Cutting Direction | Right Hand |
| Chipbreaker | M1 |
