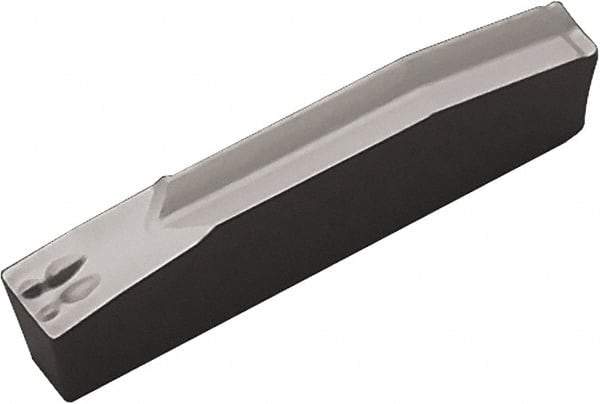

Kyocera - 5GMN Grade CR9025, 5mm Cutting Width Carbide Grooving Insert - Neutral, 0.8mm Corner Radius, Columnar TiCN/TiN Finish
Item #: 50370865
Brand: Kyocera
Model #: 8801464
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GMN |
| Insert Size | 5 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Cutting Width (Decimal Inch) | 0.1969 |
| Manufacturer's Grade | CR9025 |
| Coating | Columnar TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 4.30 |
| Cutting Height (Decimal Inch) | 0.1693 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Cut-Off |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.031496 |
| Coating Process | CVD |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GMN |
| Manufacturers Catalog Number | GMN5 |
| Insert Thickness (Decimal Inch) | 0.1654 |
| Insert Thickness (mm) | 4.2000 |
