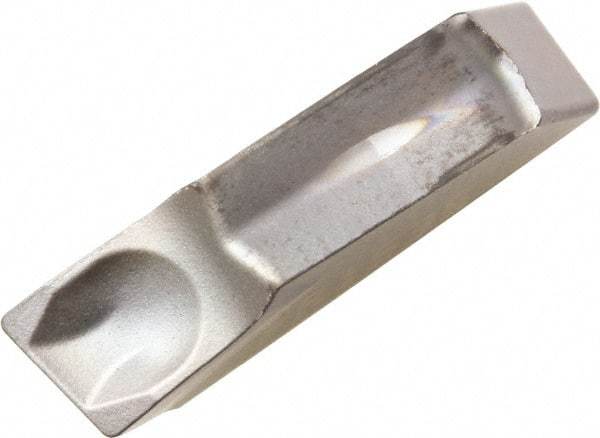

Kyocera - TK S CR9025 Grade, 0.122" Cutting Width, Carbide Cutoff Insert - 8° Left Hand Lead Angle, 0.0098" Cnr Rad, TiCN/TiN Coated
Item #: 50370782
Brand: Kyocera
Model #: 8802927
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TK |
| Insert Size | 3 |
| Lead Angle Direction | Left Hand |
| Lead Angle | 8 |
| Cutting Width (mm) | 3.10 |
| Cutting Width (Decimal Inch) | 0.1220 |
| Manufacturer's Grade | CR9025 |
| Coating | TiCN/TiN |
| Series | TK |
| Chipbreaker | S |
| Full Radius | No |
| Multi-Use Application | Cut-Off |
| Coating Process | CVD |
| Corner Radius (Decimal Inch) | 0.009843 |
| Corner Radius (mm) | 0.25 |
| Insert Hand | Left Hand |
| Insert Holding Method | Clamp |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TKL3 |
