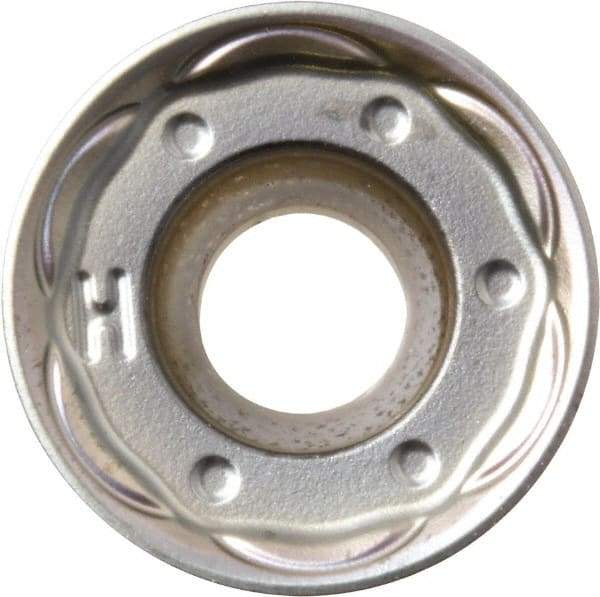

Kyocera - RDMT0803M0 GH Grade CA6535 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 3.18mm Thick
Item #: 50370493
Brand: Kyocera
Model #: 8839137
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RDMT |
| Insert Size | 0803M0 |
| Material | Carbide |
| Manufacturer's Grade | CA6535 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 8.00 |
| Width (Decimal Inch) | 0.3150 |
| Thickness (mm) | 3.18 |
| Thickness (Decimal Inch) | 0.1252 |
| Hole Diameter (mm) | 3.00 |
| Hole Diameter (Decimal Inch) | 0.1181 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | GH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | RDMT0803M0EN-GH |
