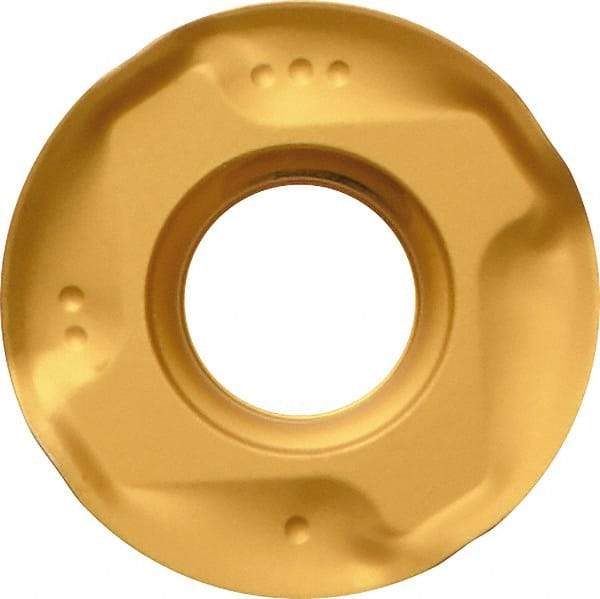

Kyocera - ROMU1204 GM Grade CA6535 Carbide Milling Insert - TiCN/Al2O3/TiN Finish, 4.75mm Thick
Item #: 50370477
Brand: Kyocera
Model #: 8838354
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ROMU |
| Insert Size | 1204 |
| Material | Carbide |
| Manufacturer's Grade | CA6535 |
| Coating | TiCN/Al2O3/TiN |
| Width (mm) | 12.00 |
| Width (Decimal Inch) | 0.4724 |
| Thickness (mm) | 4.75 |
| Thickness (Decimal Inch) | 0.1870 |
| Hole Diameter (mm) | 4.60 |
| Hole Diameter (Decimal Inch) | 0.1811 |
| Coating Process | CVD |
| Shape | Round |
| Insert Hand | Right Hand |
| Chipbreaker | GM |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | ROMU1204M0ER-GM |
