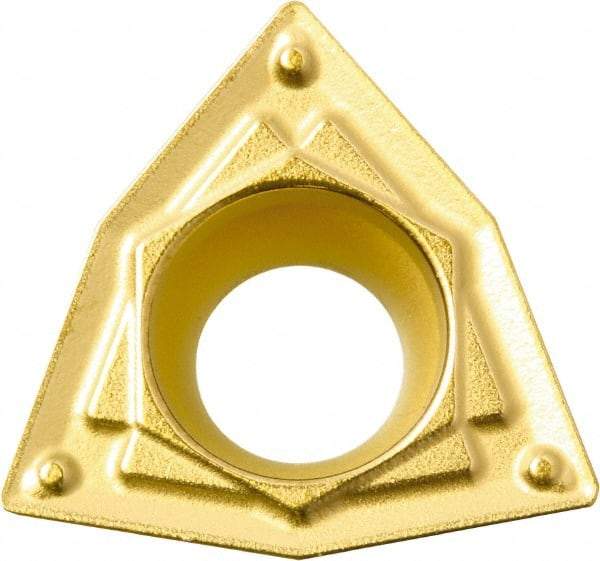

Kyocera - WPMT21.51 HQ Grade CA6525 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 80° Trigon, 1/4" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50369990
Brand: Kyocera
Model #: 8824376
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPMT |
| Insert Size | 21.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CA6525 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | HQ |
| Hole Diameter (mm) | 2.79 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| ISO Number | WPMT110204HQ |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Coating Process | CVD |
| Manufacturers Catalog Number | WPMT2151HQ CA6525 |
| Primary Workpiece Material | M |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
