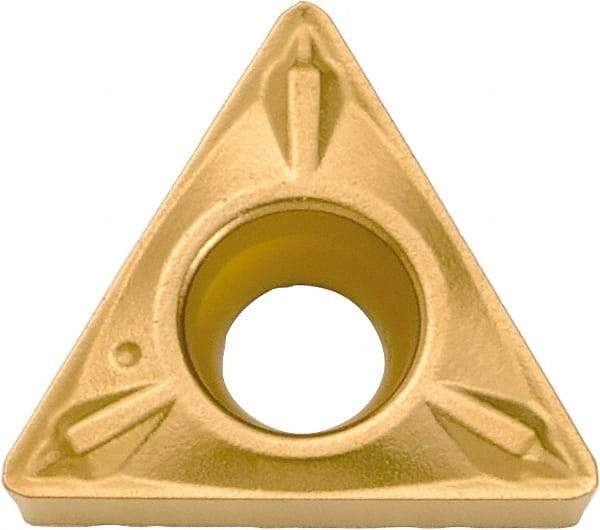

Kyocera - TCMX1.81.51 WP Grade CA515 Carbide Turning Insert - TiCN/Al2O3/TiN Finish, 60° Triangle, 7/32" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50369933
Brand: Kyocera
Model #: 8844966
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TCMX |
| Insert Size | 1.81.51 |
| Material | Carbide |
| Inscribed Circle (mm) | 5.56 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | CA515 |
| Coating | TiCN/Al2O3/TiN |
| Chip Breaker | WP |
| Hole Diameter (mm) | 2.39 |
| Hole Diameter (Decimal Inch) | 0.0940 |
| Rake Angle | 20 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Manufacturers Catalog Number | TCMX18151WP CA515 |
| Primary Workpiece Material | P |
| Included Angle | 60 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Triangle |
