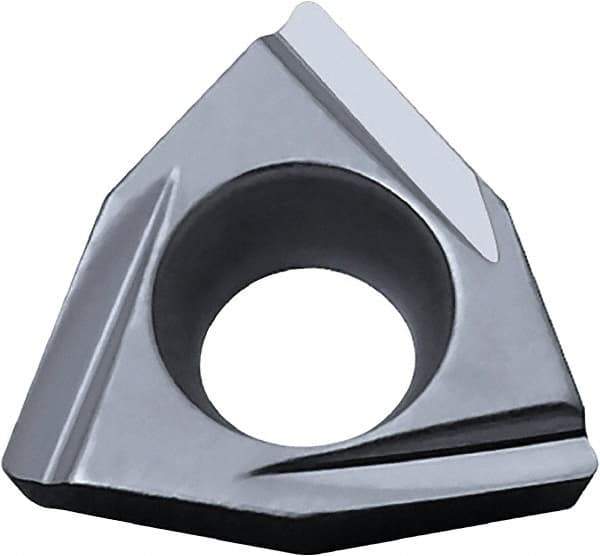

Kyocera - WPGT322 Y Grade KW10 Carbide Turning Insert - Uncoated, 80° Trigon, 3/8" Inscr Circle, 1/8" Thick, 1/32" Corner Radius
Item #: 50365246
Brand: Kyocera
Model #: 8816530
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPGT |
| Insert Size | 322 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.18 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | KW10 |
| Coating | Uncoated |
| Material Grade | K10 |
| Chip Breaker | Y |
| Hole Diameter (mm) | 4.39 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| ISO Number | WPGT160308L-Y |
| Rake | Positive |
| Rake Angle | 14 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | WPGT322LY KW10 |
| Primary Workpiece Material | N |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
