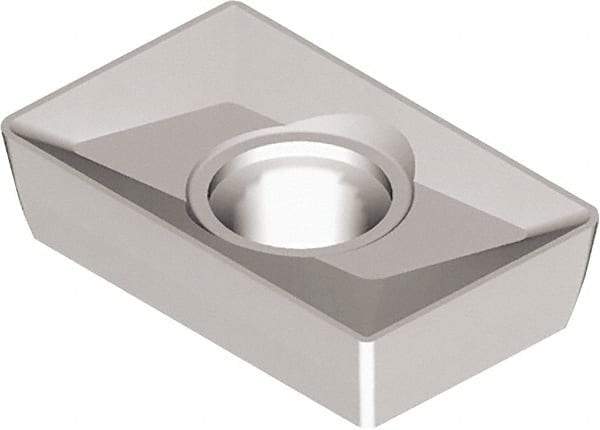

Kyocera - XPMT090208 Grade KW10 Carbide Milling Insert - WC/Co Finish, 0.094" Thick, 1/4" Inscribed Circle, 0.031" Corner Radius
Item #: 50364355
Brand: Kyocera
Model #: 8850534
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | XPMT |
| Insert Size | 090208 |
| Material | Carbide |
| Material Grade | K10 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Width (Decimal Inch) | 0.2500 |
| Length (Decimal Inch) | 0.3250 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Thickness (Decimal Inch) | 0.0940 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Hole Diameter (Decimal Inch) | 0.1100 |
| Relief Angle | 15.000 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | XPMT090208 |
