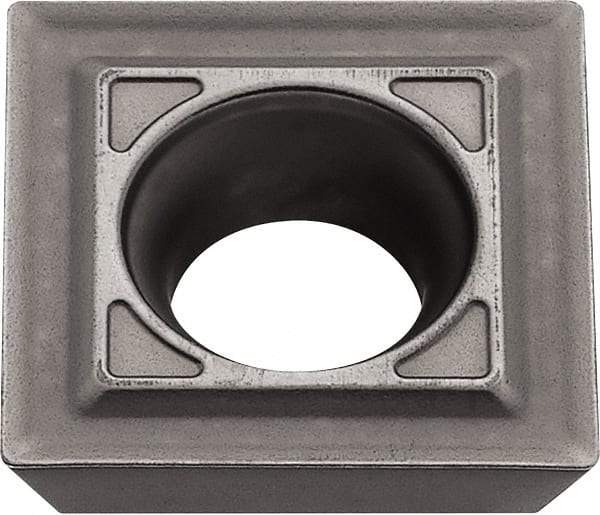

Kyocera - SDMT31.81 Grade KW10 Carbide Milling Insert - WC/Co Finish, 0.218" Thick, 7/32" Inscribed Circle
Item #: 50364322
Brand: Kyocera
Model #: 8813446
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDMT |
| Insert Size | 31.81 |
| Material | Carbide |
| Material Grade | K10 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Width (Inch) | 7/32 |
| Width (Decimal Inch) | 0.2188 |
| Inscribed Circle (Inch) | 7/32 |
| Inscribed Circle (Decimal Inch) | 0.2188 |
| Thickness (Decimal Inch) | 0.2180 |
| Hole Diameter (Decimal Inch) | 0.2680 |
| Relief Angle | 15.000 |
| Shape | Square |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | SDMT31.81C |
