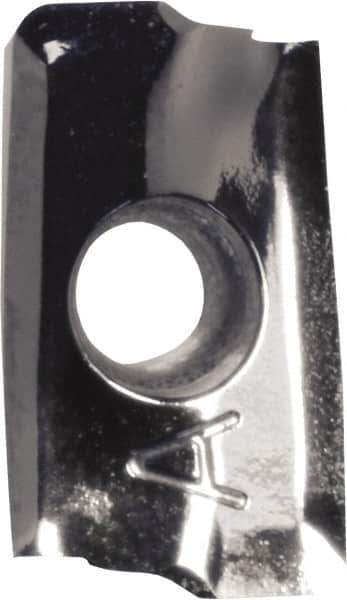

Kyocera - BDGT170420 JA Grade GW25 Carbide Milling Insert - WC/Co Finish, 4.9mm Thick
Item #: 50364298
Brand: Kyocera
Model #: 8822198
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | BDGT |
| Insert Size | 170420 |
| Material | Carbide |
| Manufacturer's Grade | GW25 |
| Coating | WC/Co |
| Width (mm) | 9.60 |
| Width (Decimal Inch) | 0.3780 |
| Length (mm) | 17.00 |
| Length (Decimal Inch) | 0.6693 |
| Thickness (mm) | 4.90 |
| Thickness (Decimal Inch) | 0.1929 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 15.000 |
| Included Angle | 82 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | JA |
| Cutting Edge Style | Sharp |
| Manufacturers Catalog Number | BDGT170420FRJA |
