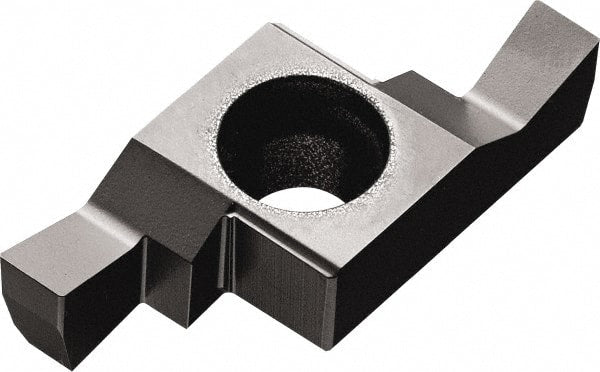

Kyocera - GER275020E GW15 Carbide Grooving Insert
Item #: 50363886
Brand: Kyocera
Model #: 8825800
Product Specifications
| Insert Style | GE |
| Insert Size | 275 |
| Material | Carbide |
| Cutting Width (mm) | 2.75 |
| Cutting Width (Decimal Inch) | 0.1083 |
| Maximum Depth of Cut (mm) | 4.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.1772 |
| Material Grade | Micrograin |
| Manufacturer's Grade | GW15 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.55 |
| Cutting Height (Decimal Inch) | 0.2185 |
| Relief Angle | 2 |
| Chipbreaker | E |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 21.66 |
| Overall Length (Decimal Inch) | 0.8528 |
| Series | Sige |
| Manufacturers Catalog Number | GER275-020E |
| Overall Width (mm) | 9.54 |
| Overall Width (Decimal Inch) | 0.3756 |
| Series Number | Sige |
| Corner Radius (Inch) | 0.007874 |
