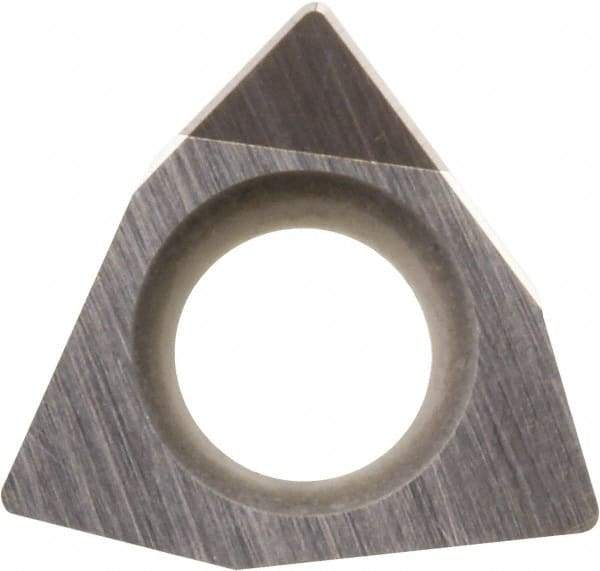

Kyocera - WBGW1.51.51 Grade KBN510 CBN Turning Insert - Uncoated, 80° Trigon, 3/16" Inscr Circle, 3/32" Thick, 1/64" Corner Radius
Item #: 50361062
Brand: Kyocera
Model #: 8819184
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | WBGW |
| Insert Size | 1.51.51 |
| Material | CBN |
| Inscribed Circle (mm) | 4.76 |
| Inscribed Circle (Decimal Inch) | 0.1875 |
| Inscribed Circle (Inch) | 3/16 |
| Thickness (Inch) | 3/32 |
| Thickness (Decimal Inch) | 0.0938 |
| Thickness (mm) | 2.38 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (mm) | 0.3969 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | KBN510 |
| Coating | Uncoated |
| Hole Diameter (mm) | 2.31 |
| Hole Diameter (Decimal Inch) | 0.0910 |
| Rake | Positive |
| Relief Angle | 5 |
| Manufacturers Catalog Number | WBGW15151LSE KBN510 |
| Primary Workpiece Material | H |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Insert Holding Method | Screw |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Trigon |
