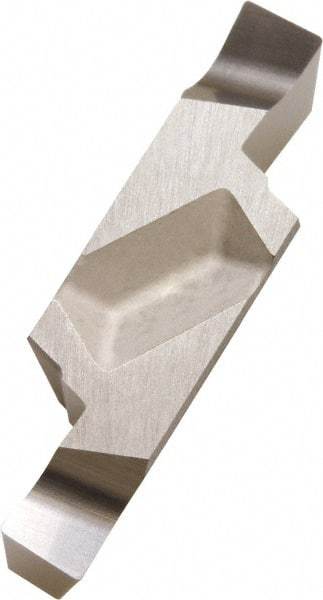

Kyocera - 490GVF B Grade KW10, 4.9mm Cutting Width Carbide Grooving Insert - 5.3mm Max Depth of Cut, Left Hand, 0.2mm Corner Radius, WC/Co Finish
Item #: 50359595
Brand: Kyocera
Model #: 8811436
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GVF |
| Insert Size | 490 |
| Material | Carbide |
| Cutting Width (mm) | 4.90 |
| Cutting Width (Decimal Inch) | 0.1929 |
| Maximum Depth of Cut (mm) | 5.30 |
| Maximum Depth of Cut (Decimal Inch) | 0.2087 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Relief Angle | 2 |
| Chipbreaker | B |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.007874 |
| Overall Length (mm) | 20.00 |
| Overall Length (Decimal Inch) | 0.7874 |
| Series | GVF |
| Rake Angle | 14 |
| Rake | Negative |
| Manufacturers Catalog Number | GVFL490B |
| Insert Thickness (Decimal Inch) | 0.2283 |
| Insert Thickness (mm) | 5.8000 |
