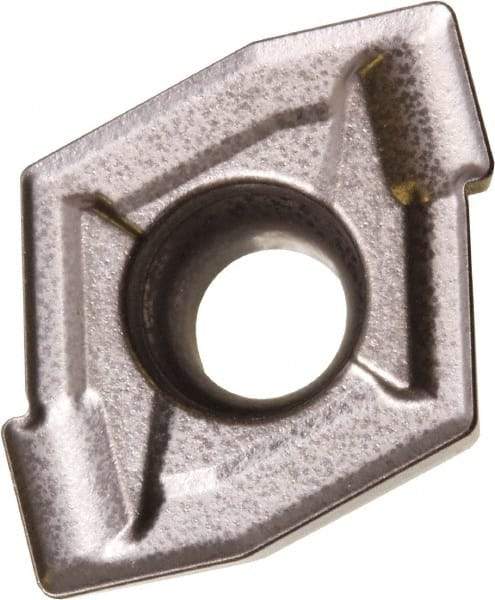

Kyocera - ZCMT50203 SP Grade KW10 Carbide Indexable Drill Insert - WC/Co Finish, Diamond
Item #: 50359157
Brand: Kyocera
Model #: 8805931
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZCMT |
| Insert Size | 50203 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Thickness (mm) | 2.38 |
| Thickness (Decimal Inch) | 0.0937 |
| Corner Radius (mm) | 0.30 |
| Corner Radius (Decimal Inch) | 0.011811 |
| Shape | Diamond |
| Width (Decimal Inch) | 0.1969 |
| Width (mm) | 5.00 |
| Length (mm) | 5.90 |
| Length (Decimal Inch) | 0.2323 |
| Hole Diameter (mm) | 2.30 |
| Hole Diameter (Decimal Inch) | 0.0906 |
| Relief Angle | 7 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
| Chipbreaker | SP |
