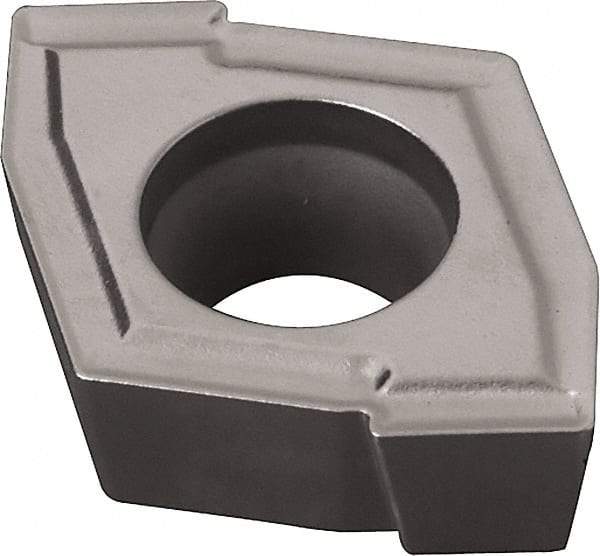

Kyocera - ZCMT12 Grade KW10 Carbide Indexable Drill Insert - WC/Co Finish, Diamond
Item #: 50359082
Brand: Kyocera
Model #: 8804270
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ZCMT |
| Insert Size | 12 |
| Material | Carbide |
| Manufacturer's Grade | KW10 |
| Thickness (mm) | 3.97 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (mm) | 0.60 |
| Corner Radius (Decimal Inch) | 0.023622 |
| Shape | Diamond |
| Width (Decimal Inch) | 0.5039 |
| Width (mm) | 12.80 |
| Length (mm) | 14.30 |
| Length (Decimal Inch) | 0.5630 |
| Hole Diameter (mm) | 5.60 |
| Hole Diameter (Decimal Inch) | 0.2205 |
| Relief Angle | 7 |
| Coating | WC/Co |
| Cutting Direction | Right Hand |
