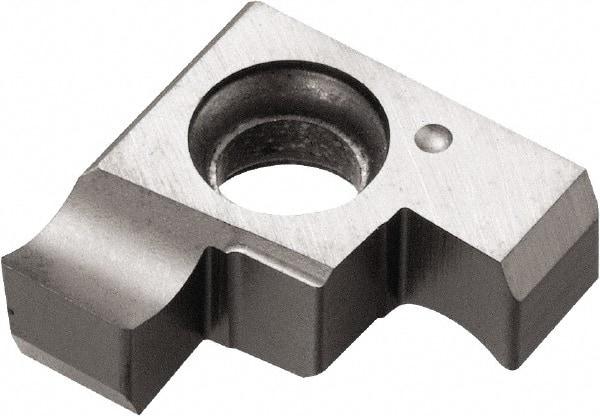

Kyocera - 150GE A Grade KW10, 1.5mm Cutting Width Carbide Grooving Insert - 1.5mm Max Depth of Cut, Left Hand, 0.1mm Corner Radius, WC/Co Finish
Item #: 50358100
Brand: Kyocera
Model #: 8822844
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GE |
| Insert Size | 150 |
| Material | Carbide |
| Cutting Width (mm) | 1.50 |
| Cutting Width (Decimal Inch) | 0.0591 |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0591 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (mm) | 2.58 |
| Cutting Height (Decimal Inch) | 0.1016 |
| Relief Angle | 2 |
| Chipbreaker | A |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.10 |
| Corner Radius (Decimal Inch) | 0.003937 |
| Overall Length (mm) | 6.50 |
| Overall Length (Decimal Inch) | 0.2559 |
| Series | Sige |
| Rake Angle | 17 |
| Rake | Positive |
| Manufacturers Catalog Number | GEL150-010A |
| Overall Width (mm) | 6.69 |
| Overall Width (Decimal Inch) | 0.2634 |
