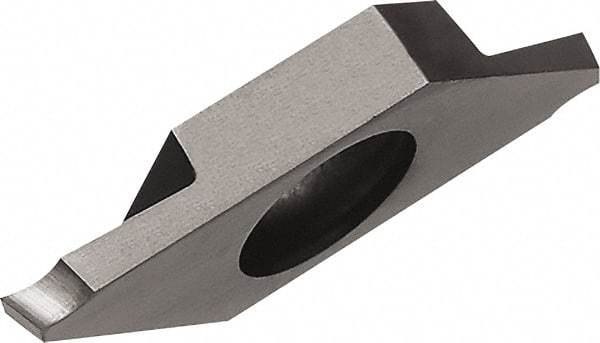

Kyocera - TKF S KW10 Grade, 0.0394" Cutting Width, Carbide Cutoff Insert - 0° Lead Angle, 0.0012" Cnr Rad, WC/Co Coated
Item #: 50357946
Brand: Kyocera
Model #: 8821207
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TKF |
| Insert Size | 12 |
| Lead Angle | 0 |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Manufacturer's Grade | KW10 |
| Coating | WC/Co |
| Series | TKF |
| Chipbreaker | S |
| Full Radius | No |
| Multi-Use Application | Cut-Off; Grooving |
| Cutting Height (mm) | 8.70 |
| Cutting Height (Decimal Inch) | 0.3425 |
| Corner Radius (Decimal Inch) | 0.001181 |
| Corner Radius (mm) | 0.03 |
| Insert Hand | Right Hand |
| Insert Holding Method | Screw |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
| Width Tolerance | 0.03 (mm) |
| Manufacturers Catalog Number | TKF12R100-S |
