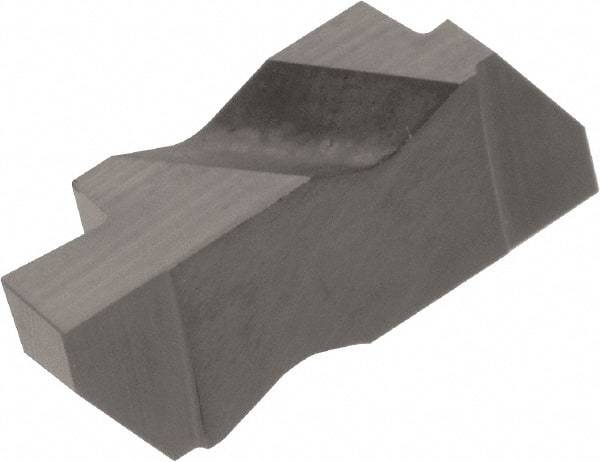

Kyocera - 3094KCG Grade A65, 3/32" Cutting Width Ceramic Grooving Insert - 0.15" Max Depth of Cut, Left Hand, 0.008" Corner Radius, Al2O3/TiC3 Finish
Item #: 50356120
Brand: Kyocera
Model #: 8849910
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | KCG |
| Insert Size | 3094 |
| Material | Ceramic |
| Cutting Width (Decimal Inch) | 0.0940 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Manufacturer's Grade | A65 |
| Coating | Al2O3/TiC3 |
| Cutting Direction | Left Hand |
| Insert Hand | Left Hand |
| Cutting Height (Decimal Inch) | 0.3440 |
| Relief Angle | 3 |
| Multi-Use Tool | No |
| Corner Radius (Decimal Inch) | 0.0080 |
| Overall Length (Decimal Inch) | 0.8100 |
| Series | KCG |
| Rake Angle | 0 |
| Rake | Neutral |
| Manufacturers Catalog Number | KCG3094L |
| Included Angle | 55 |
| Insert Thickness (Decimal Inch) | 0.1950 |
