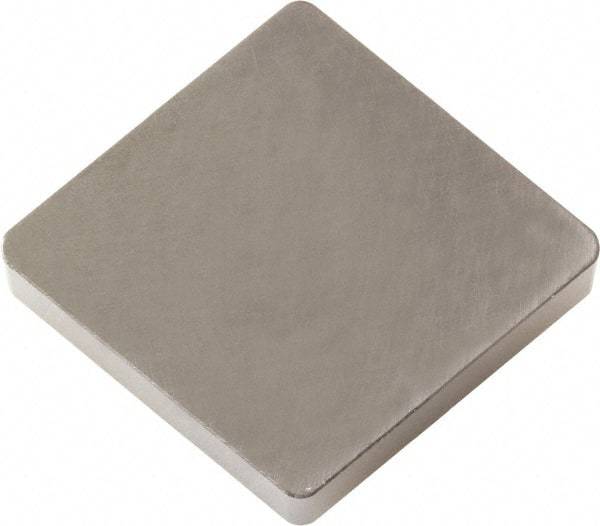

Kyocera - CNG552 Grade A65 Ceramic Turning Insert - Uncoated, 80° Diamond, 5/8" Inscr Circle, 5/16" Thick, 1/32" Corner Radius
Item #: 50355486
Brand: Kyocera
Model #: 8817026
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | CNG |
| Insert Size | 552 |
| Material | Ceramic |
| Inscribed Circle (mm) | 15.88 |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | A65 |
| Coating | Uncoated |
| ISO Number | CNG160708T02025 |
| Rake | Negative |
| Relief Angle | 0 |
| Manufacturers Catalog Number | CNG552T00825 A65 |
| Primary Workpiece Material | K |
| Included Angle | 80 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered |
| Multi Use Application | Turning |
| MultiUseTool | No |
| Shape | Diamond |
