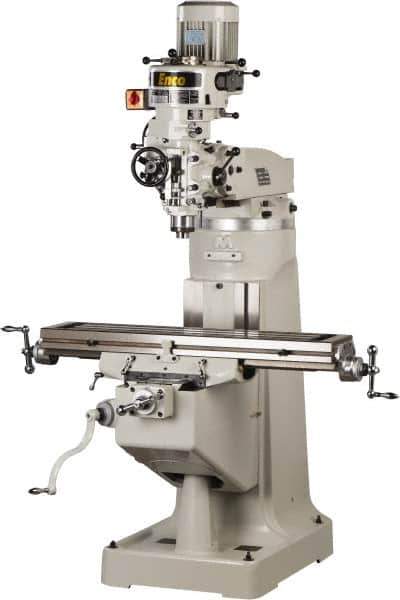

Enco - 9" Table Width x 42" Table Length, Step Pulley Control, 3 Phase Knee Milling Machine - R8 Spindle Taper, 3 hp
Item #: 50129618
Brand: Enco
Exact Tooling IR#: 04
Features and Benefits
Step pulleys are driven by a belt system that is manually changed to achieve a specific speed. They commonly feature 8 or 16 fixed speeds.
Three-phase refers to three individual lines (coils) that connect to and run voltage through the motor. Each line alternates in a sequence as they reach their voltage peak. They provide a more stable flow of voltage and more horsepower to the equipment.
| Product Specifications | |
|---|---|
| Spindle Speed Control | Step Pulley |
| Table Length (Inch) | 42 |
| Table Width (Inch) | 9 |
| Phase | 3 |
| Longitudinal Travel (Decimal Inch) | 26.0000 |
| Cross Travel (Decimal Inch) | 12.0000 |
| Knee Travel (Decimal Inch) | 15.3000 |
| Number of Spindle Speeds | 16 |
| Maximum Spindle Speed (RPM) | 5440.00 |
| Minimum Spindle Speed (RPM) | 80.00 |
| Spindle Travel Length (mm) | 127.00 |
| Spindle Travel Length (Decimal Inch) | 5.0000 |
| Spindle Taper Size | R8 |
| Quill Diameter (mm) | 85.73 |
| Quill Diameter (Decimal Inch) | 3.0000 |
| Spindle Power Feed Rate Per Minute (in/rev) | 0.0015; 0.0030; 0.0060 |
| Minimum Spindle to Table Distance (mm) | 40.00 |
| Minimum Spindle to Table Distance (Decimal Inch) | 1.5700 |
| Maximum Spindle to Table Distance (mm) | 350.00 |
| Maximum Spindle to Table Distance (Decimal Inch) | 13.7000 |
| Minimum Spindle to Column Distance (mm) | 127.00 |
| Minimum Spindle to Column Distance (Inch) | 5 |
| Minimum Spindle to Column Distance (Decimal Inch) | 7.0000 |
| Maximum Spindle To Column Distance (mm) | 457.20 |
| Maximum Spindle To Column Distance (Decimal Inch) | 18.0000 |
| Table Load Capacity (Lb.) | 552.00 |
| Table Load Capacity (kg) | 250.00 |
| Number of T-Slots | 3 |
| Left-Hand Head Tilt (Degrees) | 90.00 |
| Right-Hand Head Tilt (Degrees) | 90.00 |
| Forward Head Tilt (Degrees) | 45.00 |
| Backward Head Tilt (Degrees) | 45.00 |
| Ram Travel Length (mm) | 330.00 |
| Ram Travel Length (Decimal Inch) | 13.0000 |
| Ram Turret Swivel (Degrees) | 360.00 |
| Horsepower (HP) | 3.00 |
| Voltage | 220 |
| Overall Length (mm) | 1478.00 |
| Overall Length (Decimal Inch) | 58.0000 |
| Overall Height (mm) | 2006.00 |
| Overall Height (Decimal Inch) | 79.0000 |
| Overall Depth (mm) | 1405.00 |
| Overall Depth (Decimal Inch) | 55.0000 |
