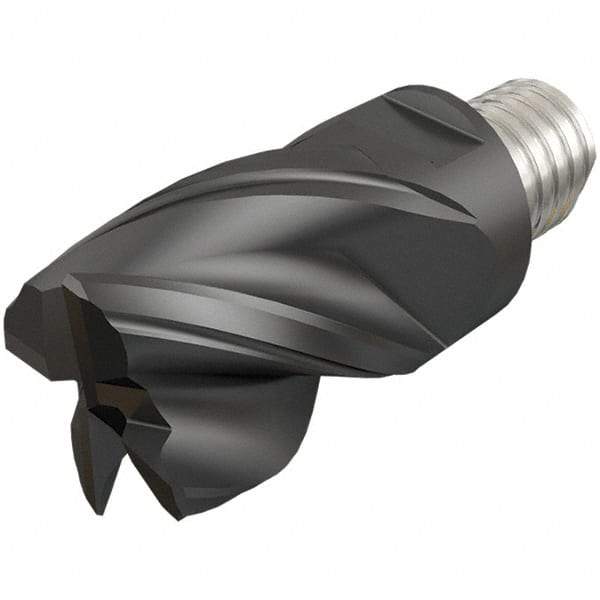

Iscar - MM EC Grade IC908 Carbide End Milling Tip Insert - TiAlN/TiN Finish, 4 Flutes, 8mm Cutting Diam, 5mm Depth of Cut, 10mm Extension
Item #: 50099191
Brand: Iscar
Model #: 5696221
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Series | ChatterFree; Multimaster |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 8.00 |
| Cutting Diameter (Decimal Inch) | 0.3150 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 5.00 |
| Depth of Cut (Decimal Inch) | 0.1969 |
| Number of Flutes | 4 |
| Coating | TiAlN/TiN |
| Milling Tip Full Description | Roughing & Finishing End Mill |
| Corner Radius (Decimal Inch) | 0.0000 |
| Coating Process | PVD |
| Extension From Holder (mm) | 10.00 |
| Extension From Holder (Decimal Inch) | 0.3937 |
| Thread Size | T05 |
