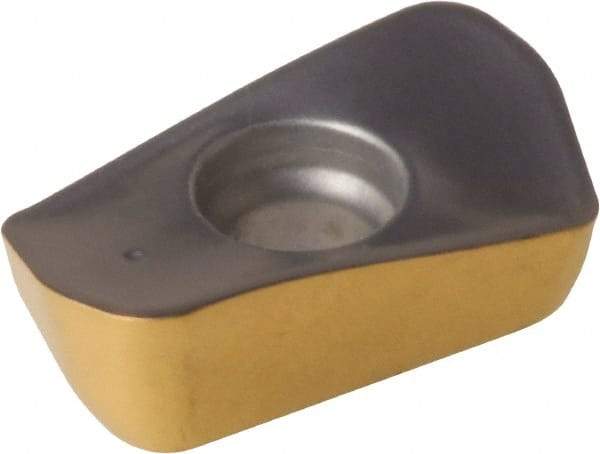

Iscar - HP ANKT0702 FF Grade IC830 Carbide Milling Insert - TiAlN/TiN Finish, 0.102" Thick, 1.19mm Corner Radius
Item #: 50099134
Brand: Iscar
Model #: 5607713
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HP ANKT |
| Insert Size | 0702 |
| Material | Carbide |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/TiN |
| Width (Decimal Inch) | 0.1730 |
| Length (Decimal Inch) | 0.3370 |
| Thickness (Decimal Inch) | 0.1020 |
| Corner Radius (Decimal Inch) | 0.0470 |
| Corner Radius (mm) | 1.19 |
| Coating Process | PVD |
| Shape | Parallelogram |
| Chipbreaker | FF |
| Maximum Depth of Cut (mm) | 0.71 |
| Maximum Depth of Cut (Decimal Inch) | 0.0280 |
| Manufacturers Catalog Number | HP ANKT 0702R12T-FF |
