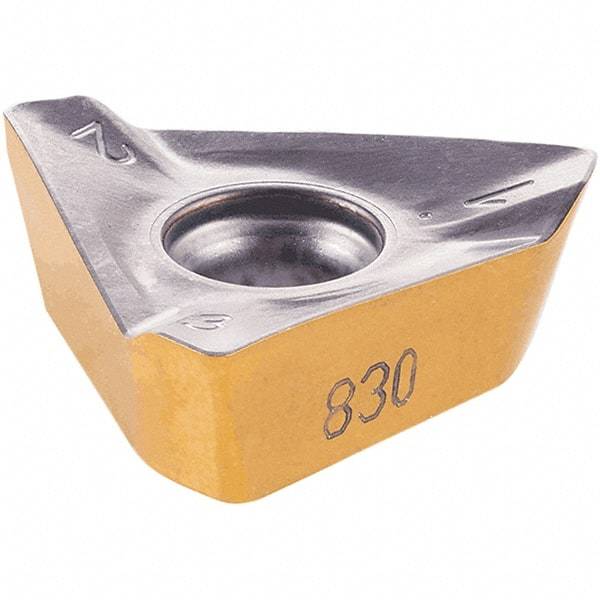

Iscar - HM390 TDKT1907 PDTR Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.276" Thick, 14mm Inscribed Circle, 0.79mm Corner Radius
Item #: 50099084
Brand: Iscar
Model #: 5607786
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TDKT |
| Insert Size | 1907 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (Decimal Inch) | 0.8270 |
| Inscribed Circle (mm) | 14.00 |
| Inscribed Circle (Decimal Inch) | 0.5510 |
| Thickness (Decimal Inch) | 0.2760 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Corner Radius (mm) | 0.79 |
| Coating Process | PVD |
| Shape | Triangle |
| Chipbreaker | PDTR |
| Maximum Depth of Cut (mm) | 16.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.6300 |
| Manufacturers Catalog Number | HM390 TDKT 1907PDTR |
