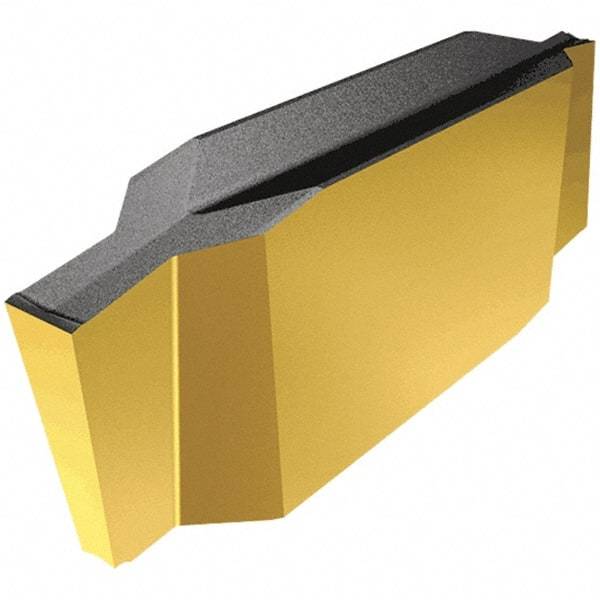

Iscar - 196015GIP Grade IC20N, 1.96mm Cutting Width Cermet Grooving Insert - 3mm Max Depth of Cut, Neutral, 0.15mm Corner Radius, Uncoated
Item #: 50098623
Brand: Iscar
Model #: 6411123
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | GIP |
| Insert Size | 196015 |
| Material | Cermet |
| Cutting Width (mm) | 1.96 |
| Cutting Width (Decimal Inch) | 0.0772 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Multi-Use Tool | No |
| Corner Radius (mm) | 0.15 |
| Corner Radius (Decimal Inch) | 0.0059 |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Manufacturers Catalog Number | GIP 1.96-0.15 |
