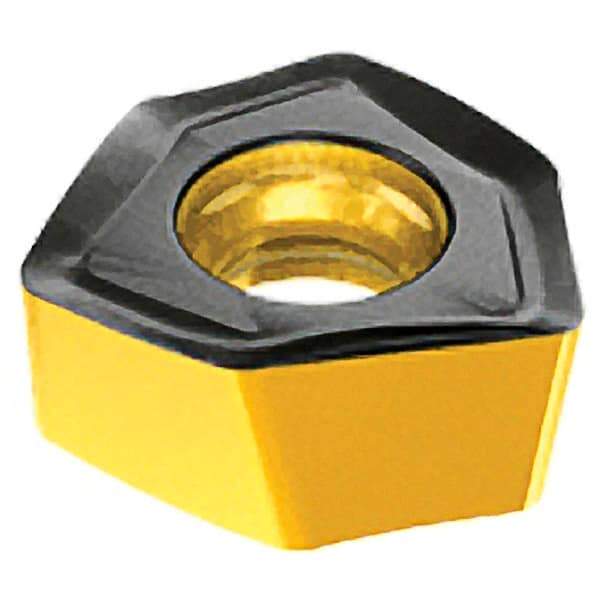

Iscar - H600 WXCU070515 T Grade IC810 Carbide Milling Insert - AlTiN/TiN Finish, 0.2323" Thick, 0.4386" Inscribed Circle, 1.5mm Corner Radius
Item #: 50097179
Brand: Iscar
Model #: 5666932
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 070515 |
| Material | Carbide |
| Manufacturer's Grade | IC810 |
| Coating | AlTiN/TiN |
| Length (Decimal Inch) | 0.2819 |
| Inscribed Circle (Decimal Inch) | 0.4386 |
| Thickness (Decimal Inch) | 0.2323 |
| Corner Radius (Decimal Inch) | 0.0591 |
| Corner Radius (mm) | 1.50 |
| Coating Process | PVD |
| Shape | Trigon |
| Chipbreaker | T |
| Manufacturers Catalog Number | H600 WXCU 070515T |
