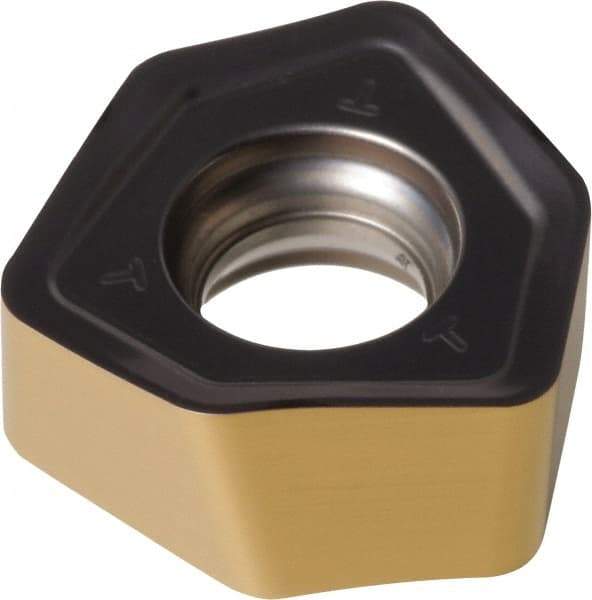

Iscar - H600 WXCU080616 RM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 0.2677" Thick, 0.5374" Inscribed Circle, 1.6mm Corner Radius
Item #: 50097138
Brand: Iscar
Model #: 5667953
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H600 WXCU |
| Insert Size | 080616 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (Decimal Inch) | 0.3465 |
| Inscribed Circle (Decimal Inch) | 0.5374 |
| Thickness (Decimal Inch) | 0.2677 |
| Corner Radius (Decimal Inch) | 0.0630 |
| Corner Radius (mm) | 1.60 |
| Coating Process | PVD |
| Shape | Trigon |
| Chipbreaker | RM |
| Manufacturers Catalog Number | H600 WXCU 080616RM |
