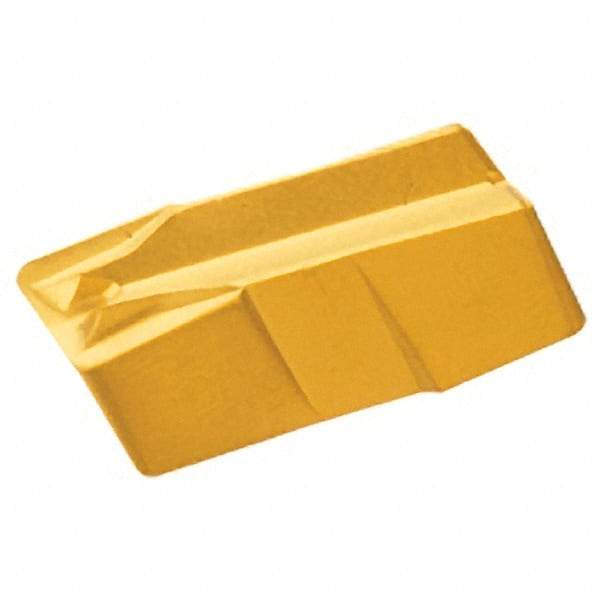

Iscar - 600E080GIF Grade IC830, 6mm Cutting Width Carbide Grooving Insert - 3.6mm Max Depth of Cut, Neutral, 0.8mm Corner Radius, TiN/TiAlN Finish
Item #: 50097096
Brand: Iscar
Model #: 6405511
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIF |
| Insert Size | 600E080 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2362 |
| Maximum Depth of Cut (mm) | 3.60 |
| Maximum Depth of Cut (Decimal Inch) | 0.1417 |
| Manufacturer's Grade | IC830 |
| Coating | TiN/TiAlN |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.00 |
| Cutting Height (Decimal Inch) | 0.1969 |
| Multi-Use Tool | Yes |
| Multi-Use Application | External Turning; Internal Turning |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Coating Process | PVD |
| Overall Length (mm) | 15.30 |
| Overall Length (Decimal Inch) | 0.6024 |
| Series | Cut Grip |
| Manufacturers Catalog Number | GIF 6.00E-0.80 |
