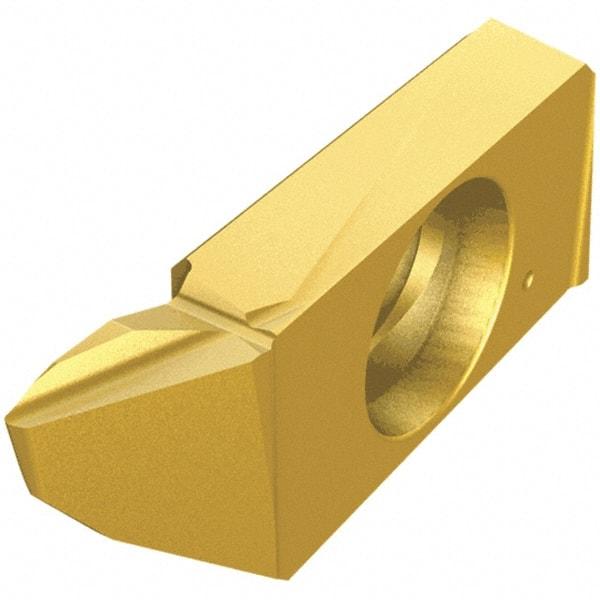

Iscar - 22SCIL Grade IC1008, 1mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, 0.08mm Corner Radius, TiAlN/TiN Finish
Item #: 50067800
Brand: Iscar
Model #: 6410052
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCIL |
| Insert Size | 22 |
| Material | Carbide |
| Cutting Width (mm) | 1.00 |
| Cutting Width (Decimal Inch) | 0.0394 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1181 |
| Material Grade | C1/C2/C3/C5/C6 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Cutting Direction | Left Hand |
| Cutting Height (mm) | 7.00 |
| Cutting Height (Decimal Inch) | 0.2756 |
| Multi-Use Tool | Yes |
| Corner Radius (mm) | 0.08 |
| Corner Radius (Decimal Inch) | 0.0032 |
| Coating Process | PVD |
| Overall Length (mm) | 22.00 |
| Overall Length (Decimal Inch) | 0.8661 |
| Series | Swisscut |
| Manufacturers Catalog Number | SCIL 22-BL08-10K7 |
| Overall Width (mm) | 3.00 |
| Overall Width (Decimal Inch) | 0.1181 |
