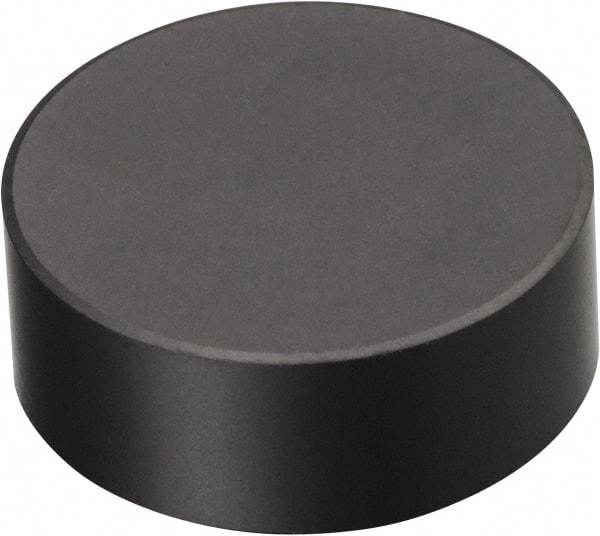

Sandvik Coromant - RNG22 Grade 7925 CBN Turning Insert - Round, 1/4" Inscr Circle, 1/8" Thick, 3mm Corner Radius
Item #: 49683352
Brand: Sandvik Coromant
Model #: 5782761
Exact Tooling IR#: 04
Features and Benefits
Cubic boron nitride (CBN) is similar in hardness to diamond. It is commonly used for machining hardened steel and related alloys at high temperatures.
| Product Specifications | |
|---|---|
| Insert Style | RNG |
| Insert Size | 22 |
| Material | CBN |
| Inscribed Circle (mm) | 6.35 |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Thickness (mm) | 3.17 |
| Corner Radius (mm) | 3 |
| Manufacturer's Grade | 7925 |
| ISO Number | RNGN060300S02520M 7925 |
| Relief Angle | 0 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Chamfered andRounded |
| Shape | Round |
