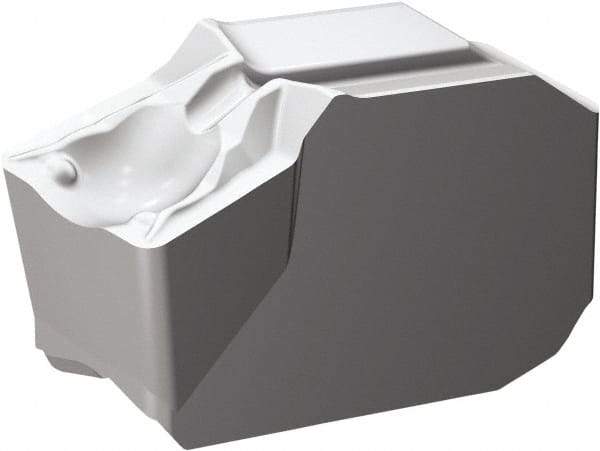

Sandvik Coromant - QD-N0800 TF Grade H13A Carbide Turning Insert - Uncoated, 6.5mm Thick, 1/32" Corner Radius
Item #: 49548472
Brand: Sandvik Coromant
Model #: 6427518
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | QD-N |
| Insert Size | 0800 |
| Material | Carbide |
| Length (Decimal Inch) | 0.7480 |
| Thickness (Decimal Inch) | 0.2559 |
| Thickness (mm) | 6.50 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.8 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Manufacturer's Grade | H13A |
| Coating | Uncoated |
| Chip Breaker | TF |
| Insert Length (Decimal Inch) | 0.7480 |
| ISO Number | QD-NL-0800-0008-TF H13A |
| Relief Angle | 7 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut QD |
| Insert Holding Method | Clamp |
| Cutting Edge Style | Rounded |
| Cutting Width (mm) | 8.00 |
