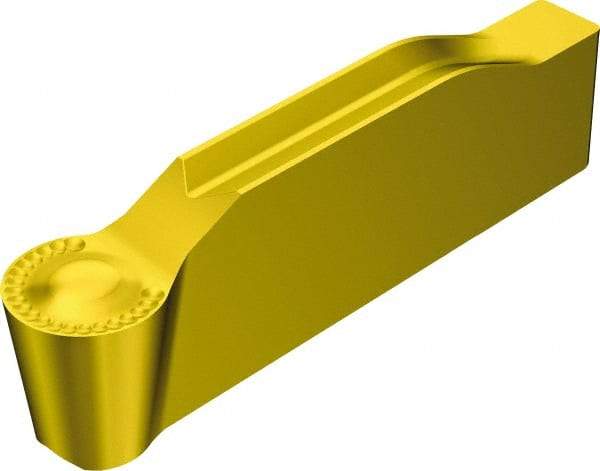

Sandvik Coromant - N123G1, 2135 Grade Carbide Profiling Insert - TiCn/Al2O3/TiN Finish, 7° Relief Angle, 4.3mm Thick, 2mm Corner Radius
Item #: 49548274
Brand: Sandvik Coromant
Model #: 5736026
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | N123 |
| Insert Size | G1 |
| Manufacturer's Grade | 2135 |
| Thickness (mm) | 4.30 |
| Thickness (Decimal Inch) | 0.1693 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0787 |
| Relief Angle | 7 |
| Coating | TiCn/Al2O3/TiN |
| Coating Process | CVD |
| Chipbreaker | RM |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | CoroCut 1-2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0709 |
| Insert Holding Method | Clamp |
