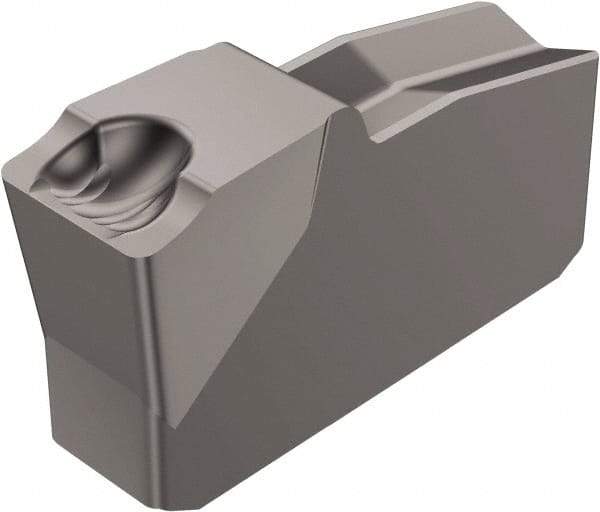

Sandvik Coromant - 30N151.2 5G Grade 525, 3.15mm Cutting Width Cermet Grooving Insert - Neutral, Uncoated
Item #: 49548068
Brand: Sandvik Coromant
Model #: 5738082
Exact Tooling IR#: 04
Features and Benefits
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 30 |
| Material | Cermet |
| Cutting Width (mm) | 3.15 |
| Cutting Width (Decimal Inch) | 0.1240 |
| Manufacturer's Grade | 525 |
| Coating | Uncoated |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.79 |
| Cutting Height (Decimal Inch) | 0.2672 |
| Relief Angle | 7 |
| Insert Seat Size | 30 |
| Chipbreaker | 5G |
| Overall Length (mm) | 5.46 |
| Overall Length (Decimal Inch) | 0.2150 |
| Series | T-Max Q-Cut |
| ISO Number | N151.2-315-30-5G 525 |
| Insert Thickness (Decimal Inch) | 0.2672 |
