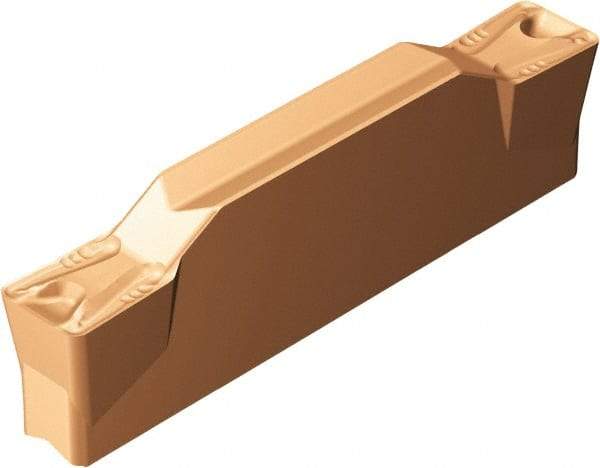

Sandvik Coromant - 2050N123 TM Grade 1145, 5mm Cutting Width Carbide Grooving Insert - 23.4mm Max Depth of Cut, Neutral, 0.4mm Corner Radius, TiAlN/AlCr2O3 Finish
Item #: 49547995
Brand: Sandvik Coromant
Model #: 5736296
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N123 |
| Insert Size | 2050 |
| Material | Carbide |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 23.40 |
| Maximum Depth of Cut (Decimal Inch) | 0.9213 |
| Manufacturer's Grade | 1145 |
| Coating | TiAlN/AlCr2O3 |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Relief Angle | 7 |
| Chipbreaker | TM |
| Corner Radius (mm) | 0.40 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Coating Process | PVD |
| Series | CoroCut 1-2 |
| ISO Number | N123J2-0500-0004-TM 1145 |
