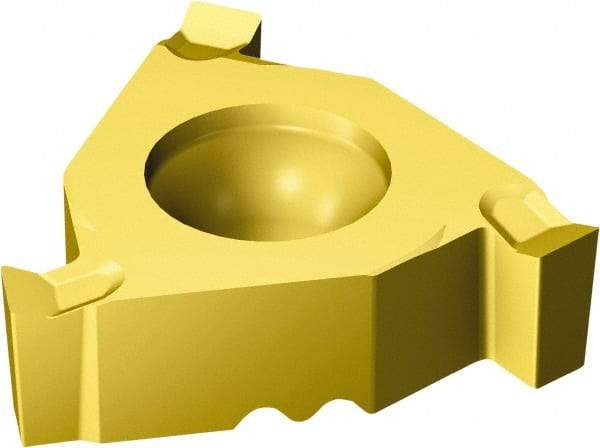

Sandvik Coromant - 22R254 Grade 1135, 2.65mm Cutting Width Carbide Grooving Insert - 0.0866" Max Depth of Cut, Right Hand, TiCrAlN/TiN Finish
Item #: 49547979
Brand: Sandvik Coromant
Model #: 5910841
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | 254 |
| Insert Size | 22R |
| Material | Carbide |
| Cutting Width (mm) | 2.65 |
| Cutting Width (Decimal Inch) | 0.1043 |
| Maximum Depth of Cut (Decimal Inch) | 0.0866 |
| Manufacturer's Grade | 1135 |
| Coating | TiCrAlN/TiN |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Cutting Height (mm) | 5.56 |
| Cutting Height (Decimal Inch) | 0.2190 |
| Relief Angle | 0 |
| Insert Seat Size | 1/2 |
| Coating Process | PVD |
| Overall Length (mm) | 9.30 |
| Overall Length (Decimal Inch) | 0.3661 |
| Series | CoroThread 266 |
| ISO Number | 254RG-22CC01-265 1135 |
| Included Angle | 60 |
| Insert Thickness (Decimal Inch) | 0.2190 |
