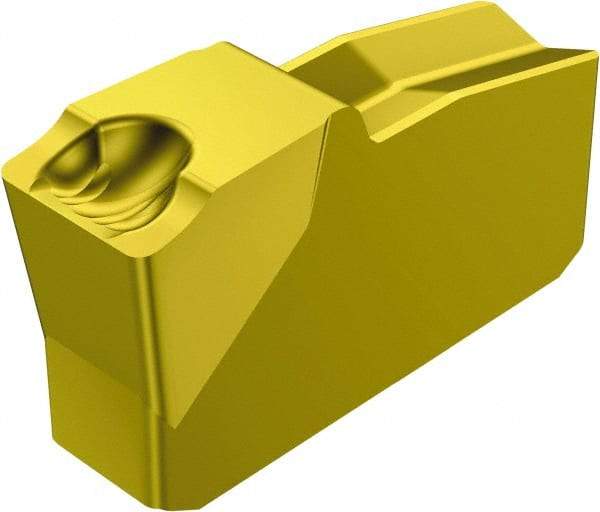

Sandvik Coromant - 20N151.2 5G Grade 235, 1.85mm Cutting Width Carbide Grooving Insert - Neutral, TiCN/TiN Finish
Item #: 49547854
Brand: Sandvik Coromant
Model #: 5737605
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | N151.2 |
| Insert Size | 20 |
| Material | Carbide |
| Cutting Width (mm) | 1.85 |
| Cutting Width (Decimal Inch) | 0.0728 |
| Manufacturer's Grade | 235 |
| Coating | TiCN/TiN |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Cutting Height (mm) | 5.62 |
| Cutting Height (Decimal Inch) | 0.2211 |
| Relief Angle | 7 |
| Insert Seat Size | 20 |
| Chipbreaker | 5G |
| Coating Process | CVD |
| Series | T-Max Q-Cut |
| ISO Number | N151.2-185-20-5G 235 |
| Insert Thickness (Decimal Inch) | 0.2211 |
